Cold press

Product Categories

Shandong Baishengyuan Group Co, Ltd. (BSY company)

Contact Now

Name: Cold press
Brand: BSY

Place of Origin : China

Brand Name : BSY

Certification : ISO9001

Model Number : BY814x8/5B, BY814x8/4C

MOQ : 1 unit

Price : 0.00

Packaging Details : load in container

Delivery Time : 30 days

Payment Terms : T/T, L/C

Supply Ability : 10unit/ month

Contact Now

Range of application:

This machine is a pre-press (cold press). It is a mainly plywood machine. It can also use other field.

Plywood machine parameter:

MODEL	BY814×8/4C	BY814×8/5B
Nominal pressure (KN)	4000	5000
Unit pressure of board surface (Mpa)	1.3	1.3
Width of press board (mm)	2700×1370	2700×1370
Max.working stroke (mm)	1000	1000
Net opening (mm)	300-1300	300-1300
Diameter and quantity of pressure cylinders (mm)	Φ 320/2	Φ 360/2
Diameter and quantity of lift cylinders (mm)	Φ 80/2	Φ 80/2
Feeding speed (m/min)	6.78	6.78
Motor power kw)	16.1	16.1
Overall dimensions (mm)	3500×2400×4650	3500×2400×4750
Weight(kg)	18000	18000

Video:

2. https://www.youtube.com/watch?v=tE10CV10DGo (Hydraulic double spindle veneer peeling line)

4. https://www.youtube.com/watch?v=R6B9Zrtu5Mk (Narrow veneer CNC spindless peeling line)

Shandong Baishengyuan Group Co., Ltd. (BSY company)

Http://www.bsyplywoodmachine.com

Email:bsyplywood@126.com

Wechat: 86 18863111349 QQ: 2238264302

Mr. Song / Mobile: +86 18863111349

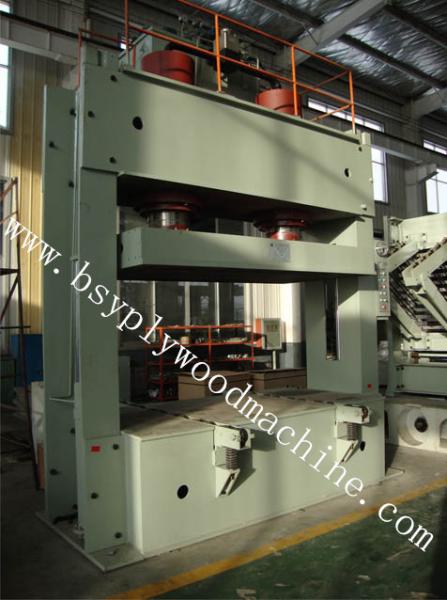

Cold press Images
